This quick start guide will help you understand and perform initial setup for your GAIA-FIELD Gravimeter.

Topics Covered

1. First start, warmup and battery charge
2. Power Up and Standby
3. Wi-Fi Connectivity
4. Create a Project and Perform Initial Calibrations
5. Take Measurements
6. Data Export

First Start

• GAIA-FIELD will arrive with installed batteries at ~30% charge.
• Open the main GAIA-FIELD Peli Case lid using the twin catches and you will see the main GAIA-FIELD panel as per Image 1 below.
• Power On the GAIA-FIELD using a long  (>5 s) press on the power button, you will see an LED sequence arounnd the core duroing start-up.
• The system will take ~2 minutes to fully boot up.
• The system is fully booted when the WiFi LED illuminated
• Connect the Dell Charger to the GAIA-FIELD Power USB the GAIA-FIELD will charge both batteries.
• At this point the GAIA-FIELD should be left to stabilise the Gravity sensor to optimum temperature for 6 hours - during this time gravity measurements will be unstable.

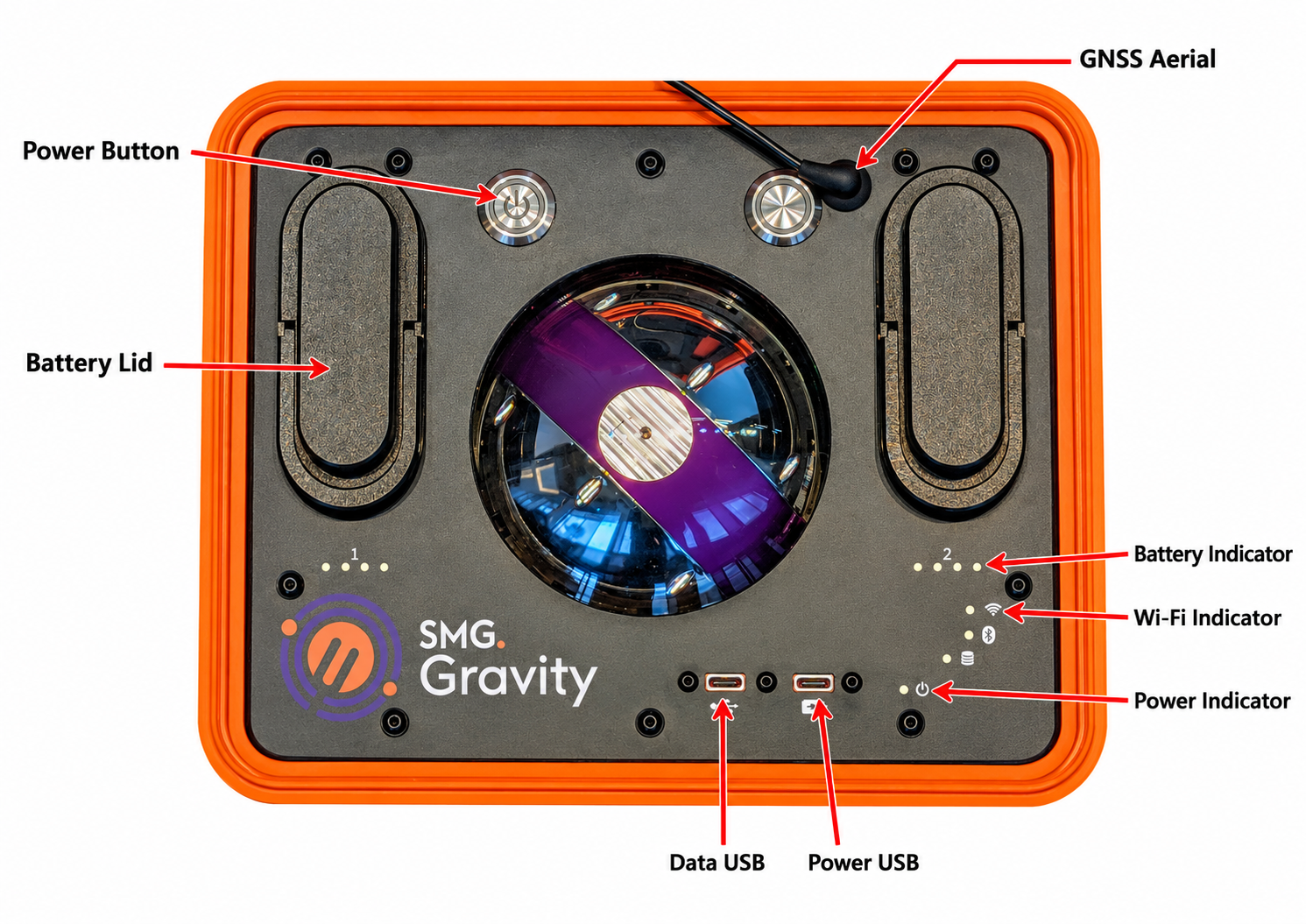

IMAGE 1. GAIA-FIELD Top Panel

Overview of the GAIA-FIELD

• The GAIA-FIELD measures gravity using a specialist SMG Vibrating Beam MEMS accelerometer.
• The MEMS is housed in the GAIA-CORE with advanced electronics and thermal control. The GAIA-CORE is visible in the centre of your GAIA-FIELD.
• To enable automatic levelling the GAIA-CORE is mounted in a gimbal.
• The gimbal is manipulated prior to any measurement to ensure the MEMS sensor is pointing at Z (maximum gravity) to within 5 milli degrees.
• Around the GAIA-CORE are two 98Ah lithium batteries giving full day charge and control electronics for the system, user interface, gimbal control and GNSS.
• There is no user interface physically on the GAIA-FIELD itself besides status LEDs, inaddition there are no control buttons besides the main power button.
• All GAIA-FIELD control is via any smart device (such as Phone, Tablet or Laptop) connected via WiFi or USB-C.

Notes on Power Up and Standby

• Power On / Off using a long  (>5 s) press on the power button
• GAIA-FIELD also has a standby mode / flight mode where the sensor is thermally controlled but all other systems including WiFi and charging are disabled.
• Enable or disable standby mode with a short (<3 s) press on the power button
• Full power up cycle takes 1-2 minutes
• Even with batteries discharged or removed the GAIA-FIELD can be started with the supplied USB-C charger connected
• In most cases it is not nessaary to remove the batteries - they charge faster in the GAIA-FIELD

Wi-Fi Connectivity

• On the rear of your GAIA-FIELD are several QR codes.
• Scan the ‘Connect’ QR code to save the Wi-Fi connection
• Ensure your smart device is connected to the correct Wi-Fi eg GAIA <Serial>
• If using a smart phone you may have to disable your cellular connection
• Scan the 'Control' QR code or enter http://192.168.9.1 to control the GAIA-FIELD via WiFI
• Enter http://192.168.8.1 to control the GAIA-FIELD via USB-C connection
• • Note the USB-C connection is Ethernet Tether over USB-C - no drivers or software are required
• Multiple smart devices can connect to a single GAIA-FIELD

NOTE: Each GAIA-FIELD has a unique Wi-Fi connection

Start a Project

• Once you have connected to your GAIA-FIELD and loaded the control page you should see the UI Home Page.
• First create a new project via the Home menu
• Enter your project name and use the GNSS for you location / or enter the values manually.

Calibrate your device (Calibration Menu)

• It is recommeneded to perform some basic calibrations on your new device.
• Firstly ENSURE the GAIA-FIELD has been powered for at least 6 hours and there are no thermal control warnings
• Once thermally stable (>6hrs), and with the unit in and stable a quiet location go to Calibration Menu and select Start Tilt Calibration (~7 mins).
• Watch this video to learn more about Tilt Calibration process
• Review the TILT CALIBRTAION results if accepotable click Apply Tilt Cal
• Next perform a Drift Calibration (6-12 hours). Place the unit stable and quiet location and via the Calibvration menu chose Drift Calibration > Start.
• Switch the the measure screen to see and review the live data. Drift should be linear over the initial 6-12 hours after warm up but may change slowly over the initial few days.
• Watch this video to learn more about the Drift Calibration process
• Stop the Drift Cal with the stop button and select Calculate Drift Calibration
• Confirm suitable calibration and click Apply Drift Cal

Take a Gravity Measurement

• Once Tilt and Drift calibrations are complete you can begin to test your GAIA-FIELD taking readings. Open an new project and take measurements.
• We recommend contacting your supplier or SMG for onkline training and best practice guidance
• Further training videos can be found here https://smggravity.com/resources/category/video-tutorials/doc/gaia-field-video-tutorials

Export Data using the Export buttons below the results table. The exported data is downloaded directly to your device in CSV format

Contact your SMG representative for any support or use our support form
