Can a Gravimeter Be Used as a Geophone?

Exploring the Overlap Between Gravity and Seismic Sensing

Gravimeter vs Geophone: Understanding the Overlap

Geophones and gravimeters are foundational to different branches of geophysics. One is a seismic workhorse tuned for fast, transient ground motion; the other, a sensitive balance designed to track slow, subtle gravitational variations.

But emerging sensor technologies are beginning to blur those lines. Thanks to improved noise floors, lower drift, and greater dynamic range, some gravimeters now demonstrate responsiveness to long-period seismic waves — raising a timely question:

Can gravimeters also serve as seismic sensors — or even operate in both modes?

Instrument Frequency and Sensitivity Comparison

Gravimeters are designed for ultra-low-frequency signals, typically above 30-second periods (i.e. <0.03 Hz), while geophones are most sensitive to frequencies from about 1 Hz to several hundred Hz. This gap has traditionally separated gravity surveys from seismic surveys — but newer designs are closing that gap from below.

Gravimeter Sensitivity to Seismic Waves

While gravimeters won’t replace geophones for high-frequency seismic imaging, they do detect long-period surface waves from earthquakes, tele-seismic signals, and ground tilt in response to mass motion.

For example:

• Superconducting gravimeters have recorded the Earth's natural resonant vibrations — known as normal modes — following major earthquakes.
• Portable MEMS gravimeters have demonstrated sensitivity to very long-period motion during strong seismic events, including early-arriving Rayleigh waves.

This responsiveness opens new opportunities for dual-mode sensing, particularly in scenarios where:

• Deployment of both seismic and gravity sensors is impractical
• Low-frequency or passive seismic data is of interest
• A long-duration response to subsurface mass motion is more valuable than high-frequency resolution

Developing Dual-Mode Gravimeters

Recent advances in sensor design and readout electronics are enabling gravimeters that could switch between static (gravity) and dynamic (seismic) operating modes.

In principle, a highly sensitive gravimeter could operate in:

• Gravity mode: focused on low-frequency or quasi-static measurements (e.g. closed-loop, high stability)
• Seismic mode: tuned to detect dynamic ground motion (e.g. open-loop or actively damped)

This dual-function approach enables:

• Event-triggered switching (e.g. wake-up to record seismic arrivals)
• Integrated sensing across long time scales and different types of motion
• Multi-physics measurements from a compact, single device

The challenge is managing dynamic range, noise rejection, and calibration to ensure high-quality data in both regimes. But with modern electronics and careful design, dual-mode gravimetry could offer real advantages — especially in field deployments where agility and versatility matter.

Use Cases for Seismic-Responsive Gravimeters

1. Passive Seismic + Structural Monitoring

Use gravimeters to track slow mass movement or subsidence while capturing low-frequency seismic signals from natural or anthropogenic sources.

2. Earthquake Early Warning / Volcano Monitoring

Deploy gravimeters in high-risk areas where both long-term deformation and short-term seismic activity matter — with the option to switch modes or fuse data types.

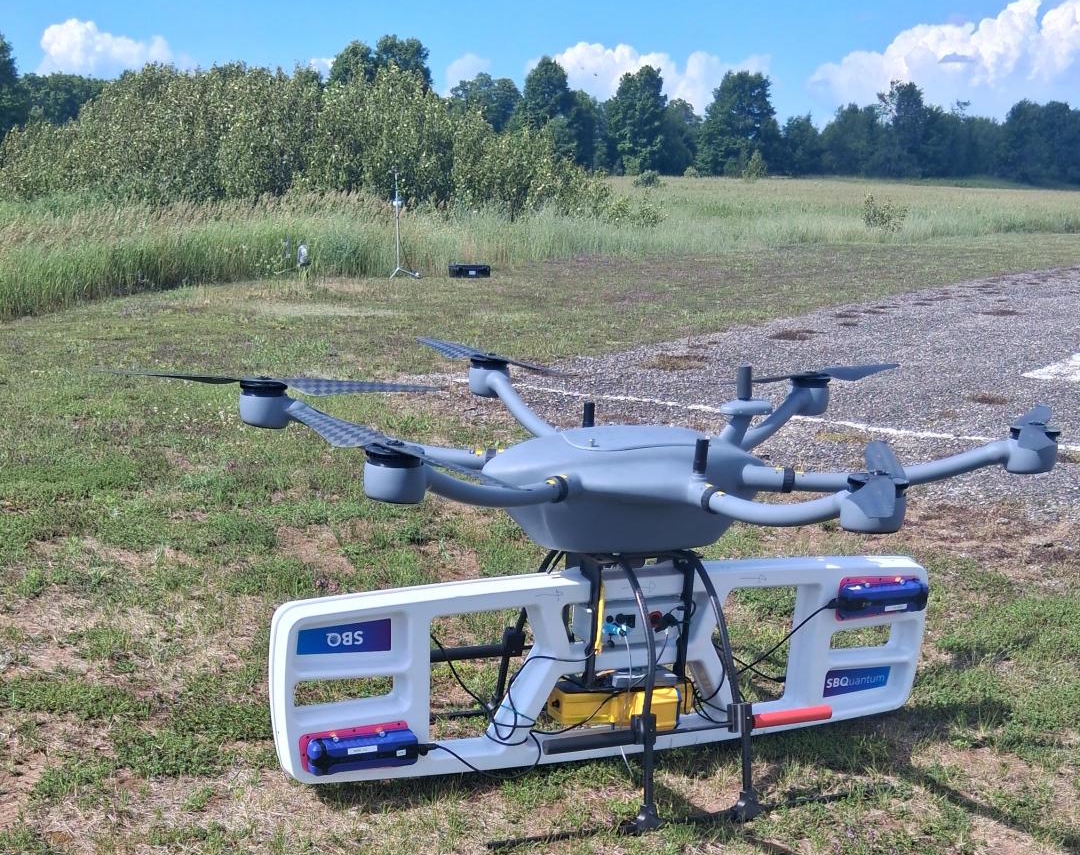

3. Remote or UAV Sensing

On UAVs or in remote deployments, gravimeters can serve as long-term monitors and opportunistic seismic detectors, extending mission capability without adding extra sensors.

Conclusion

Gravimeters aren't a replacement for geophones — but they may complement or enhance them in the right context. As instrumentation continues to evolve, the boundary between static and dynamic ground sensing is becoming less fixed. How much more can a gravimeter do — if we let it?

SMG Gravity are using our latest VBA MEMS technology to expand gravity markets - contact us to learn more
