This quick start guide will help you setup and use your GAIA-FIELD Gravimeter.

Topics Covered

1. First start, Battery Charge and Install
2. Power Up and Standby
3. Wi-Fi Connectivity
4. Create a Project and Take Measurements
5. Data Analysis & Export

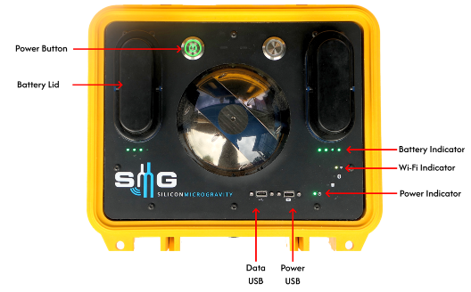

First Start

• GAIA-FIELD may arrive with discharged batteries
• Remove a battery and charge for ~30 minutes in the supplied Inspired Energy Smart Charger
• Raise the battery compartment lock to remove or replace batteries
• Re-install the battery and power up the unit with a long press on Power Button
• Connect the Dell Charger to the GAIA-FIELD Power USB – GAIA-FIELD will charge both batteries
• Leave the GAIA-FIELD for >6 hours to warm up and stabilize

NOTE: The Dell charger will NOT power up and charge the device batteries if they are fully drained.

Power Up and Standby

• Power On / Off using a long  (>3 s) press on the power button
• Enable or disable standby mode with a short (<3 s) press on the power button
• Full power up cycle takes 1-2 minutes

WARNING: The GAIA-FIELD requires 12 hours warm up time before stable measurements can be achieved

Wi-Fi Connectivity

• Scan the ‘Connect’ QR code to save the Wi-Fi connection
• Ensure your smart device is connected to the correct Wi-Fi eg GAIA <Serial>
• Scan the Control QR code or enter http://192.168.9.1 to control the GAIA-FIELD via WiFI
• Enter http://192.168.8.1 to control the GAIA-FIELD via USB-C connection
• Multiple smart devices can connect to a single GAIA-FIELD

NOTE: Each GAIA-FIELD has a unique Wi-Fi connection

Start a Project

• Start a new project or load an existing project to take measurements via the Home menu
• Enter your Lat / Long and Elevation – which are used for tidal corrections
• Use the Project Settings menu to change station time and project location data if required

Calibrate your device (Calibration Menu)

• Once thermally stable (>6hrs), and with the unit in and stable a quiet location go to Calibration Menu and select Start Tilt Calibration (~7 mins).
• Once complete click Apply Tilt Cal
• Next perform a Drift Calibration (6-12 hours). Place the unit stable and quiet during calibration
• Stop the Drift Cal with the stop button and select Calculate Drift Calibration
• Confirm suitable calibration and click Apply Drift Cal

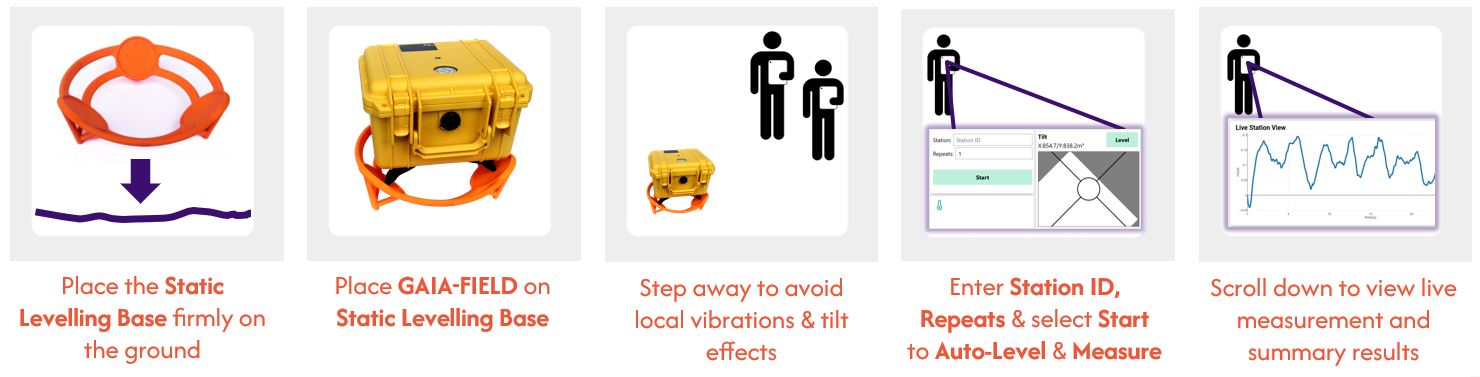

Take a Gravity Measurement

Export Data using the Export buttons below the results table. The exported data is downloaded directly to your device in CSV format

Contact your SMG representative for any support or use our support form
